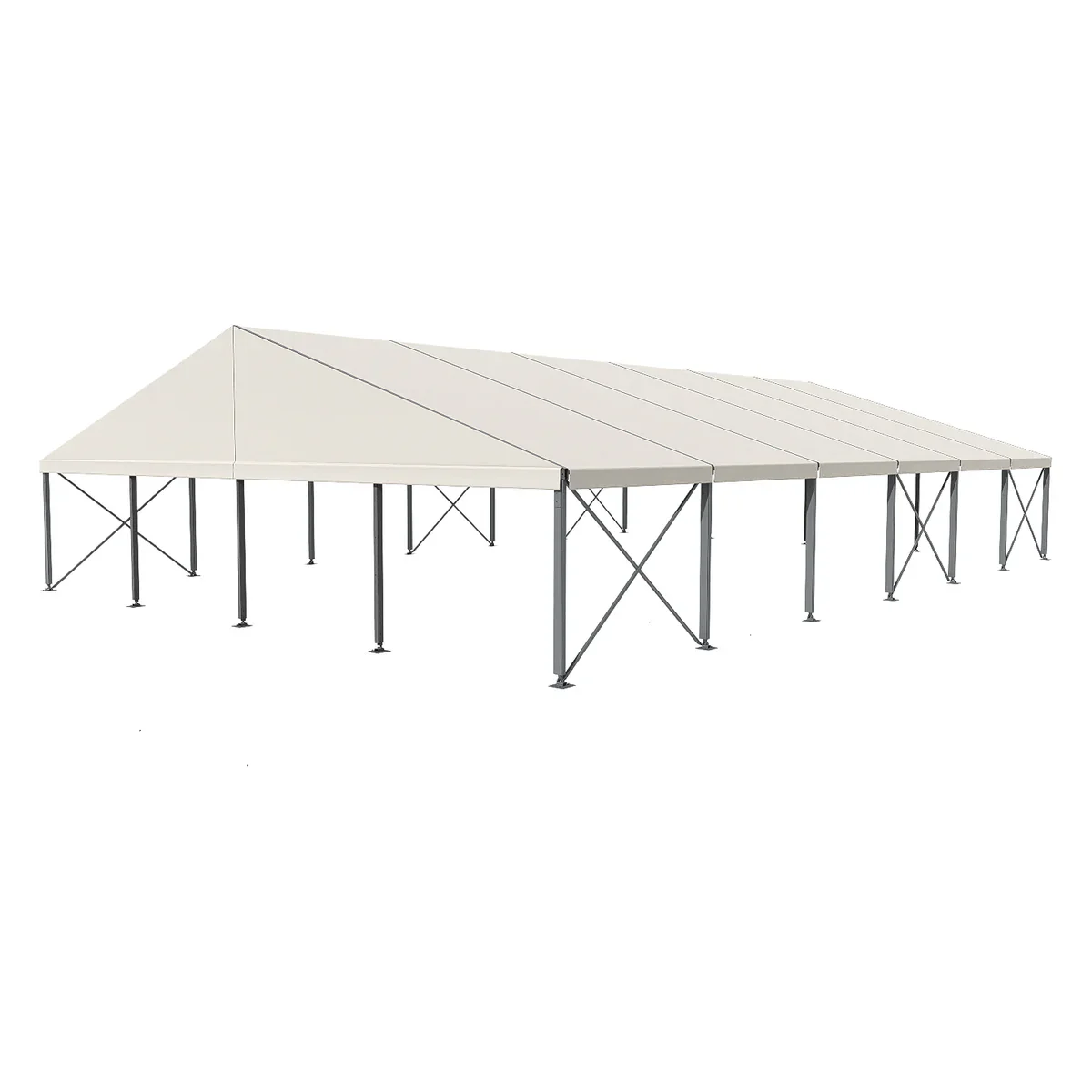

66' Wide Clear Span A-Frame Tent, Aluminum Frame
66' Width
The 66' Wide Clear Span A-Frame Tent is a high-performance event shelter designed for spacious, unobstructed coverage. Featuring a durable aluminum frame and clear-span construction, it provides superior stability and versatility for any occasion. Ideal for corporate events, weddings, and large gatherings. Enjoy free shipping and extended warranties. Upgrade your venue today!
| Clear Span Width | 66' (20m) |
| Eave Height | 13′ (4m) |
| Frame Profile | 203 x 112 x 4mm (4-channel) |
| Frame Material | Hard-pressed extruded aluminum 6061/T6 (13HW) |
| Eave Connectors | Hot-dip galvanized steel insert |
| Roof Fabric | 650GSM White PVC / 950GSM Clear PVC |
| Frame Warranty | Frame 10 Years |
| Roof Warranty | White PVC 5 Years / Clear PVC 2 Years |
Capacity Chart
| Size | Area (sqm) | CocktailStanding | TheatreSeating | Seating Trestle Table | Seating Round Table |
| 66' x 50' | 306 | 425 | 210 | 405 | 325-405 |
| 66' x 66' | 404 | 560 | 275 | 540 | 430-540 |
| 66' x 82' | 541 | 750 | 370 | 720 | 575-720 |
| 66' x 100' | 613 | 875 | 430 | 840 | 670-840 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity, which may be different from the numbers we have provided.
Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony
Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables
Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables, etc.
Add-on accessories available (contact us for pricing)
Usage & Engineering Certifications
Clear Span A-Frame Tents are designed as temporary or semi-permanent structures. They meet wind speed requirements for most (though not all) CA locations for semi-permanent installations.
As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Clear Span A-Frame Tents can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, they cannot guarantee compliance with local regulations.
Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
Original: $99,161.68
-65%$99,161.68
$34,706.59
Description
66' Width
The 66' Wide Clear Span A-Frame Tent is a high-performance event shelter designed for spacious, unobstructed coverage. Featuring a durable aluminum frame and clear-span construction, it provides superior stability and versatility for any occasion. Ideal for corporate events, weddings, and large gatherings. Enjoy free shipping and extended warranties. Upgrade your venue today!
| Clear Span Width | 66' (20m) |
| Eave Height | 13′ (4m) |
| Frame Profile | 203 x 112 x 4mm (4-channel) |
| Frame Material | Hard-pressed extruded aluminum 6061/T6 (13HW) |
| Eave Connectors | Hot-dip galvanized steel insert |
| Roof Fabric | 650GSM White PVC / 950GSM Clear PVC |
| Frame Warranty | Frame 10 Years |
| Roof Warranty | White PVC 5 Years / Clear PVC 2 Years |
Capacity Chart
| Size | Area (sqm) | CocktailStanding | TheatreSeating | Seating Trestle Table | Seating Round Table |
| 66' x 50' | 306 | 425 | 210 | 405 | 325-405 |
| 66' x 66' | 404 | 560 | 275 | 540 | 430-540 |
| 66' x 82' | 541 | 750 | 370 | 720 | 575-720 |
| 66' x 100' | 613 | 875 | 430 | 840 | 670-840 |
This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity, which may be different from the numbers we have provided.
Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony
Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables
Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables, etc.
Add-on accessories available (contact us for pricing)
Usage & Engineering Certifications
Clear Span A-Frame Tents are designed as temporary or semi-permanent structures. They meet wind speed requirements for most (though not all) CA locations for semi-permanent installations.
As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Clear Span A-Frame Tents can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, they cannot guarantee compliance with local regulations.
Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
