20' Width

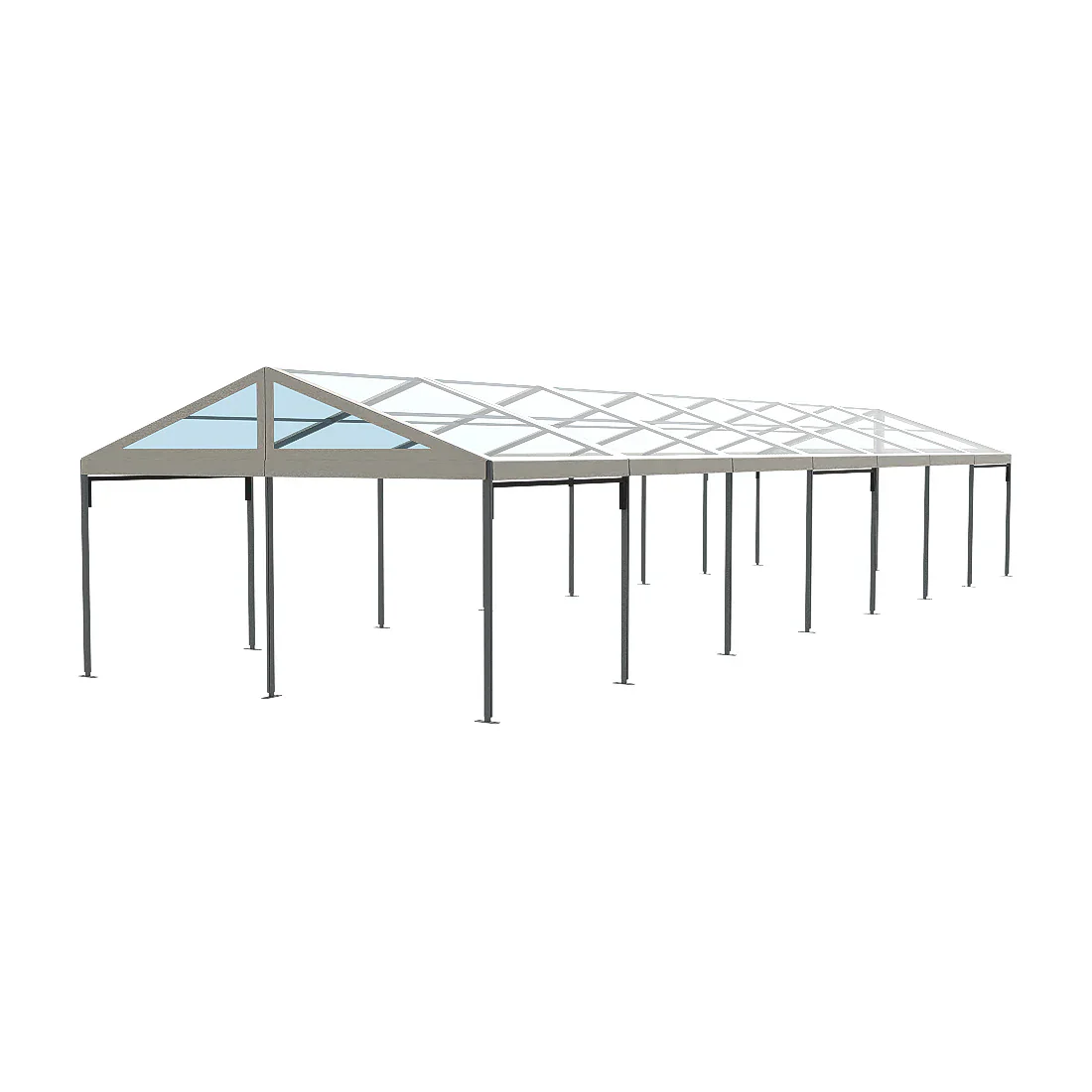

The 20' Wide Clear Span A-Frame Tent is a premium event structure offering expansive coverage and durability. Built with a sturdy aluminum frame and a clear-span design, it provides unobstructed space for various applications. Ideal for weddings, corporate events, and large-scale activations. Enjoy free shipping and extended warranties. Elevate your event setup today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	20'  (6m)
Eave Height	8.5′ (2.6m)
Frame Profile	84 x 84 x 3mm (2-channel)
Frame Material	Hard-pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert
Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years

Capacity Chart

Size	Area (sqm)	CocktailStanding	TheatreSeating	Seating Trestle Table	SeatingRound Table
20' x 20'	36	50	24	48	40-48
20' x 30'	54	75	48	72	60-72
20' x 40'	72	100	72	96	80-96
20' x 50'	90	125	96	120	100-120
20' x 60'	108	150	120	144	120-144
20' x 70'	126	175	144	168	140-168



This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity, which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee; there is no room for anything else, such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else, such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)

Usage & Engineering Certifications

Clear Span A-Frame Tents are designed as temporary or semi-permanent structures. They meet wind speed requirements for most (though not all) CA locations for semi-permanent installations.

As building codes and regulations vary by site, compliance verification is the customer’s responsibility. Upon request, Clear Span A-Frame Tents can engage an engineer for site-specific analysis.
If no engineering review is requested prior to purchase, they cannot guarantee compliance with local regulations.

Note: Snow loading is not included in engineering analyses. It is the customer’s responsibility to prevent snow or ice accumulation on the tent.
